Pharmaceutical manufacturing requires equipment that does not contaminate when in contact with other products. Reactors, transfer lines and storage vessels face aggressive acids, chlorides, and sterilization cycles daily, and any material that corrodes or leaches particles compromises batch integrity. Hastelloy C276 Sheets solve this problem through exceptional resistance to pitting and stress corrosion in high-purity environments. Many fabricators source nickel alloy C276 sheets specifically for this reason. This blog covers the alloy’s properties, benefits, pharmaceutical applications and selection criteria.

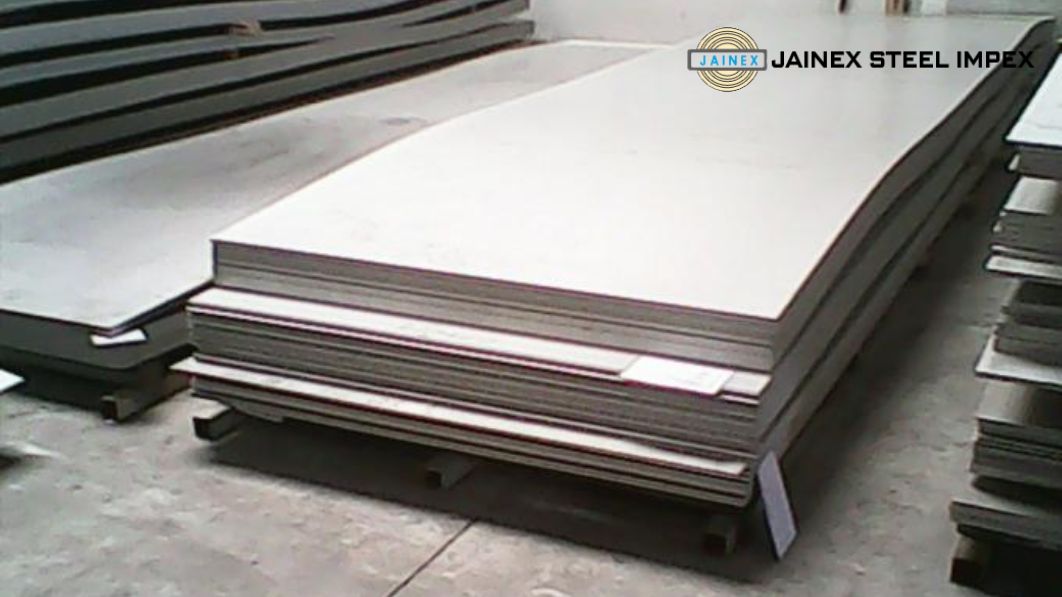

What Are Hastelloy C276 Sheets?
Hastelloy C276 Sheets are nickel-molybdenum-chromium alloy sheets engineered for service in oxidizing and reducing chemical environments. The alloy carries roughly 57% nickel, 16% chromium, 16% molybdenum and 4% tungsten, a composition that resists both wet chlorine and hot contaminated acids. The material is manufactured to UNS N10276 Sheets specification, in accordance with ASTM B575 and ASME SB575. The minimum tensile strength is 690 MPa and the minimum yield strength is 283 MPa in the annealed condition. Pharmaceutical processors favor Hastelloy C276 Sheet stock for its resistance to pitting during cleaning-in-place cycles, steam sterilization and prolonged exposure to acid.
Key Properties of Hastelloy C276 Sheets
Several material characteristics make Hastelloy C276 Sheets suitable for pharmaceutical service, from corrosion resistance to mechanical durability under repeated thermal cycling and cleaning regimens.
- Hastelloy C276 Sheets resist chloride-induced pitting even in stagnant, low-flow zones common in pharmaceutical piping.
- The alloy withstands both oxidizing agents like ferric chloride and reducing acids such as hydrochloric acid without degrading.
- Sheets maintain structural integrity at temperatures up to 1093°C, supporting sterilization and high-temperature processing steps.
- Minimum tensile strength of 690 MPa allows thinner sheet gauges without sacrificing vessel wall strength.
- Fabricators can use standard TIG and MIG techniques to weld and form Hastelloy Alloy C276 Sheets without cracking.
- The alloy is resistant to pitting, crevice corrosion and stress corrosion cracking in chloride-containing cleaning solutions.
- Good quality sheets can last for decades, which means less frequent equipment replacement in GMP facilities.
Applications in Pharmaceutical Manufacturing
Pharmaceutical facilities install Hastelloy C276 sheets across equipment that contacts active pharmaceutical ingredients, solvents, and cleaning agents from synthesis through final packaging.
Pharmaceutical Reactors
Reactor vessels fabricated from Hastelloy C276 sheets handle synthesis reactions involving hydrochloric, sulfuric and phosphoric acids without pitting. The alloy tolerates repeated heating and cooling cycles without cracking or losing wall thickness.
Mixing and Blending Vessels
Mixing vessels exposed to solvent blends and acidic excipients rely on the alloy’s resistance to crevice corrosion at gasket joints and weld seams. This prevents batch contamination during formulation.
Heat Exchangers
Heat exchangers processing corrosive process streams use thin-gauge sheets to maximize thermal transfer while resisting fouling and localized attack from chloride-bearing cooling water circuits operating continuously.
Storage Tanks
The sheet’s low general corrosion rate protects product purity from storage tanks containing concentrated acids or reactive intermediates with long dwell times measured in weeks.
Process Piping Systems
The alloy is used to manufacture piping networks that transport active ingredients between processing stages, thereby preventing leaching of metal ions, a critical requirement for sterile and injectable drug formulations.
Filtration Equipment
Filtration housings and support screens made from Hastelloy C276 Sheet resist the aggressive solvents used in filter cleaning and sterilization without warping or corroding.
Sterilization Units
Sterilization equipment cycling between high-pressure steam and rapid cooling relies on the alloy’s stability across broad temperature swings without fatigue cracking at welded joints.
Chemical Transfer Systems
Transfer lines moving corrosive cleaning agents and process chemicals between vessels use the sheet to eliminate contamination risks that stainless steel piping cannot reliably prevent.
Factors to Consider When Choosing Hastelloy C276 Sheets
Selecting the right sheet specification prevents premature failure and unnecessary costs, so the following factors deserve attention before ordering material for pharmaceutical fabrication projects.
- Depending on the operating environment, either standard grade sheets or variants with a higher purity are suitable.
- Chemical compatibility with certain acids, solvents and cleaning agents must be equal to documented corrosion data.
- Sheet thickness and dimensions must be consistent with vessel design loads and fabrication tolerances.
- The mechanical strength and long-term creep resistance under continuous service depend on the operating temperature ranges.
- Fabrication and welding requirements specify a need for qualified procedures to preserve corrosion resistance at the seams.
- Compliance with ASTM and ASME means the material meets the accepted mechanical and dimensional requirements.
- Material certifications and quality testing reports verify chemical composition and traceability prior to installation.
Conclusion
Hastelloy C276 Sheets provide corrosion resistance, thermal stability and mechanical strength that pharmaceutical equipment requires for reactors, piping and storage systems. The selection of Hastelloy Alloy C276 Sheets ensures the service life of equipment, maintains purity of products and reduces maintenance costs in the long term. Jainex Steel Impex offers these sheets with validated certifications for pharmaceutical fabrication projects.
